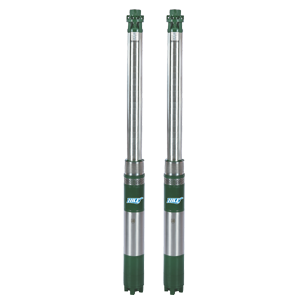

C.R.I. Nile+ 125mm/100mm Fully Stainless steel Borewell submersible pumps are made of high quality SS 304/431 grade corrosion resistance stainless steel. The optimal design of impellers and diffusers enables the best possible hydraulic efficiency.
These pumps are of multistage centrifugal type, which is powered by water filled, rewindable submersible motor suitable for continuous duty. Motor Stator is made up of low watt loss Silicon Steel Lamination and wound with high grade copper windings wires for ensuring high efficiency of the motor.
Applications
- T – Bolt design in all Motor ensures rigid construction
- Corrosion resistant stainless steel 304 grade pump parts ensures longer life
- Smooth surface finish results friction free flow of fluids
- Specially designed Thrust Bearings to withstand high axial thrust loads
- Best suitable for 150mm under size borewell
- High operating efficiency ensures more power savings
Voltage range | Single phase 220-240V; Three Phase 380-415V; 50Hz, AC Supply |
Power Range | 2.2kW to 7.5kW (3 HP to 10 HP) |
Maximum total head | 535 metre |
Maximum flow rate | 5 lps (18 m³/hr) |
Part Name | Material |
---|---|
Pump Shaft | SS 304 |
Casing | SS 304 |
Impeller | SS 304 |
Upper & Lower Housing | Cast Iron |
Rotor Shaft | SS 410 |
